Wall mounting - horizontal flow

CU ORZ ACU

0,3 kW

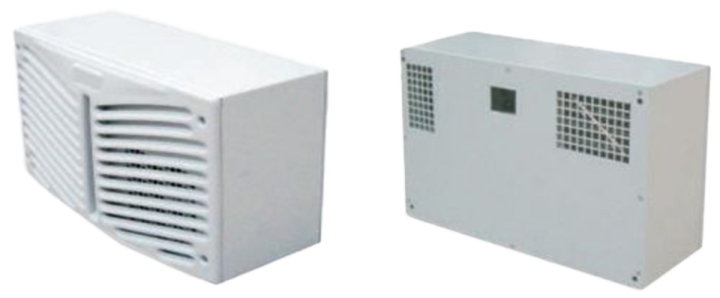

CU030ORZ ACU is packaged type, designed and manufactured to cool electrical enclosures and similar items. Very compact and light, it is designed to be positioned horizontally on the external walls of the enclosure; such a shape makes it suitable for being installed also on doors and hinged panels.

The ACU is purposely designed to allow several types of installation:

– EXTERNAL MOUNTING: the ACU is mounted externally on the wall of the electrical enclosure. The advantage of this configuration is that you have no room lost in the enclosure’s internal.

– INTERNAL MOUNTING: the ACU is mounted internally on the wall of the enclosure. The advantage of this configuration is that the room required externally is reduced to the dimensions of the plastic grille.

– EMBEDDED MOUNTING: this mounting configuration is ideal in those situations where the solution is between the two above. For this mounting configuration a kit with frames, screws, washers and plugs is available upon order.

Electrical connection with IEC cable connector and IEC panel-mounted plug, with switch and fuse protection.

CU030ORZ features forced-air-circulation evaporator and condenser, with radial fans, to improve performances and to provide an even temperature’s distribution in the enclosure’s internal.
