Displacement without free cooling

AE IR_DP
From 6,1 to 13,9kW

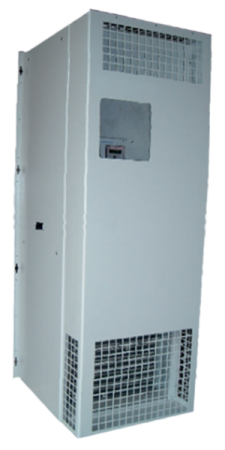

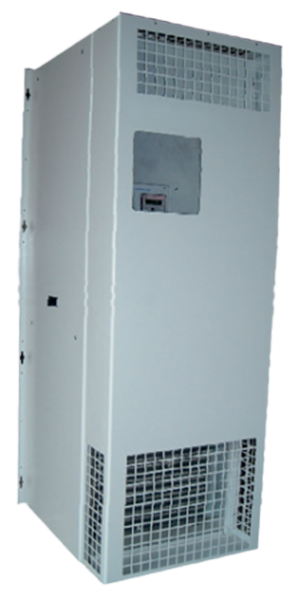

Indoor packaged air conditioning units air cooled type, ideals for installations inside room, shelter for radio base station and data processing centre.
The adjustment of the temperature is got by means of the cooling capacity variation of the air conditioner through compresor.
Inverter technology (rotation speed variation) of the air conditioning units AE IR_DP Inverter Series are displacement type. The cooling air flow is top-down.
The air conditioners P Series are equipped with internal controller and temperature and pressure probes, that allow to get an independent or coordinated “cooling system”, assuring a complete redundance of all the control and conditioning functions.
The P Series is supplied with interface user panel on board.
The line of inverter indoor air conditioning units includes cooling powers of 2/8 Kw and 3/10 Kw both single-phase and three-phase.

Technical features:
• Mainframe and panels made of galvanized steel
• High corrosion resistant
• Electrical board with external interface user panel
• Automatic restart after absence power supply
• The fans of the evaporation section have a variable speed in accordance with the evaporation pressure
• The fans of the condensation section have a variable speed in accordance with the condensation pressure
• 48Vdc air treatment section
• Eu3 class air filter

Accessories:
• Grid kit
• Canalized kit (conveyors + ducts and pipes+ grids)
• Antivibrating kit
